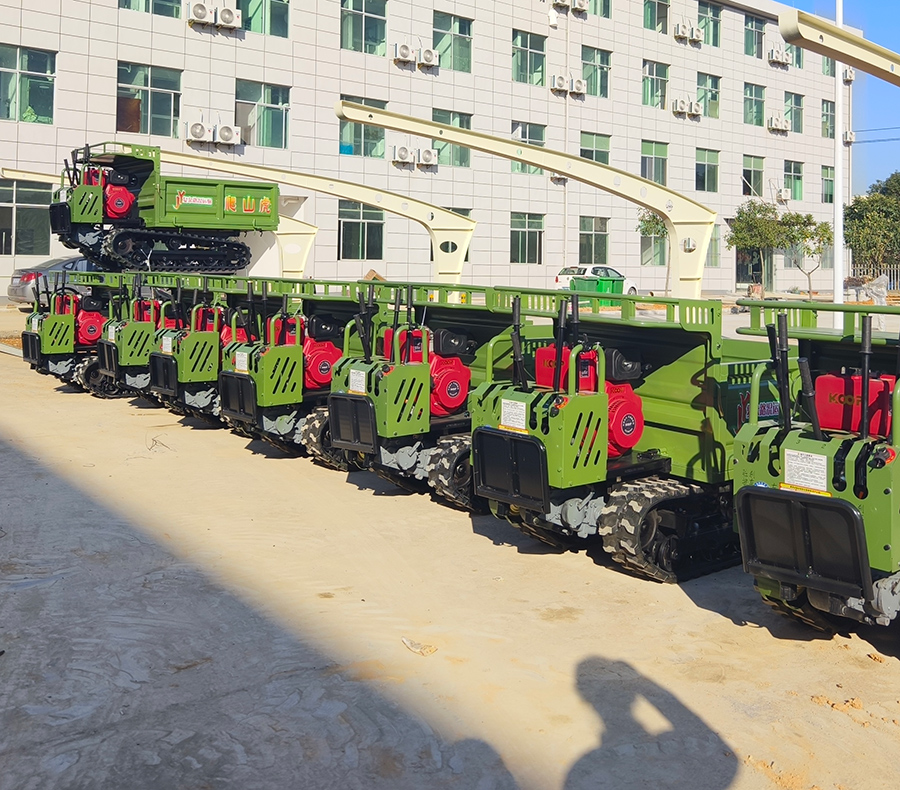

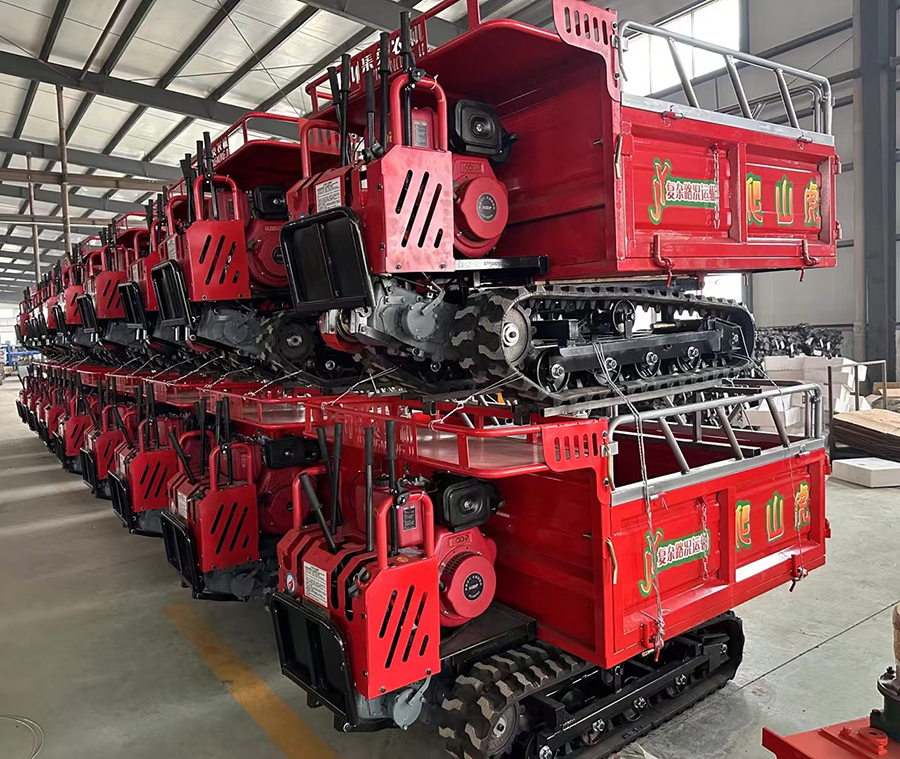

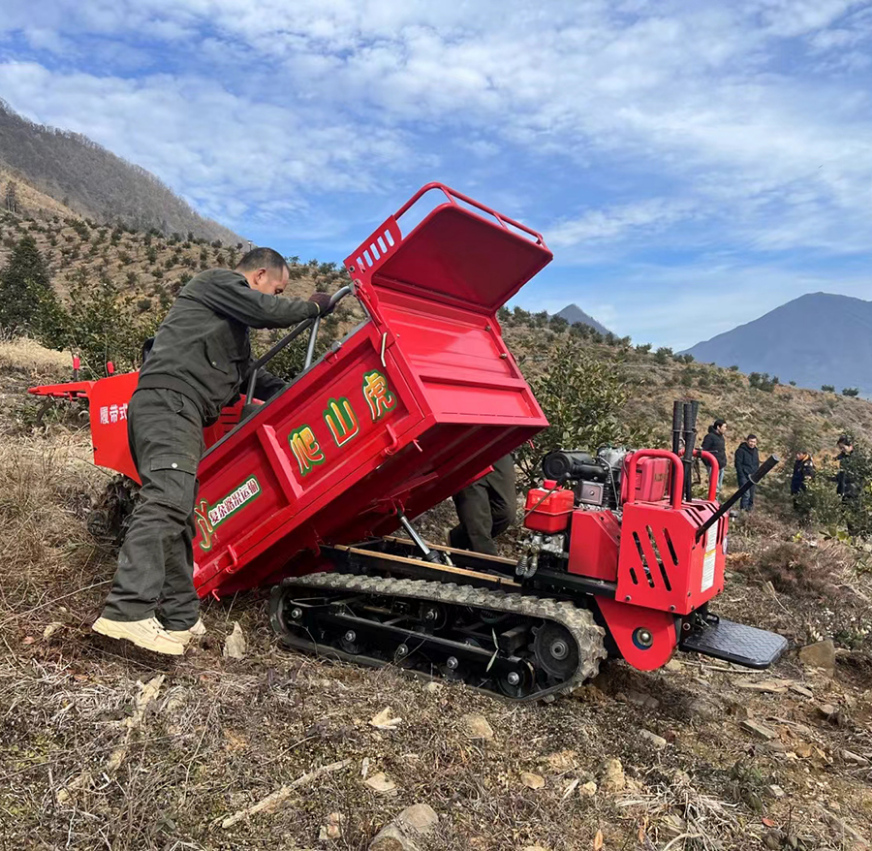

(800-6)The 500KG Rated / 1 Ton Max Mini Crawler Transporter offers exceptional versatility for small-to-medium hilly tasks! Rated 500kg for reliable daily performance (max 1000kg overload on flat/short runs), powered by a durable diesel/gasoline engine (9-13HP), with hydraulic tipping and rubber tracks for low ground pressure and strong traction on slopes up to 45°. Perfect for Southeast Asia orchards (palm/fruit hauling), African smallholder farms (affordable, tough), and global dealers seeking compact tracked dumpers. Narrow design navigates tight paths easily, with low maintenance and customizable features like remote control. High-quality China export machinery – efficient, robust, and ready for worldwide delivery!
MODEL | 7TY-500E(800-6) | GEARBOX | Ductile Cast lron 130 |
L * W * H | 2100*950*1190 mm | GEAR SHIFTS | 3 forward, 1 reverse |
CONTAINER DIMENSIONS | 1210*870*450 mm | SELF-UNLOADING | WITHOUT |
CONTAINER GROUND CLEARANCE | 425 mm | STARTING METHOD | Electric Start |
RATED LOAD CAPACITY | 500kg | CLUTCH TYPE | Lever-operated Clutch |
MAX LOAD CAPACITY | 1 ton | STEERING TYPE | Brake Steering |
MACHINE WEIGHT | 479kg | LOAD WHEEL | Steel 4*150 |
MIN TURNING RADIUS | 1 m | TRACK SPECIFICATIONS | 200*72*43 mm |
TRACK WIDTH | 84cm | TRACK MATERIAL | Engineering Rubber Track |
ENGINE MODEL | KD188FW | |
