Crawler Transporter Model 1200-6 – Rated Load 1000kg
Crawler Transporter 1200-6: Rated 1000kg for safe daily hauling, max 3 ton (3000kg) payload in short bursts. Rubber tracks master mud, steep slopes, orchards, farms & construction. Diesel/electric drive, hydraulic dump. Compact & powerful mini tracked dumper. Get quote, specs & demo video today!
PARAMETER
MODEL | 7TY-1000C(1200-6) | GEARBOX | Ductile Cast lron 210 |
L * W * H | 3070*1500*1420 mm | GEAR SHIFTS | 6 forward, 2 reverse(Hi/Lo) |

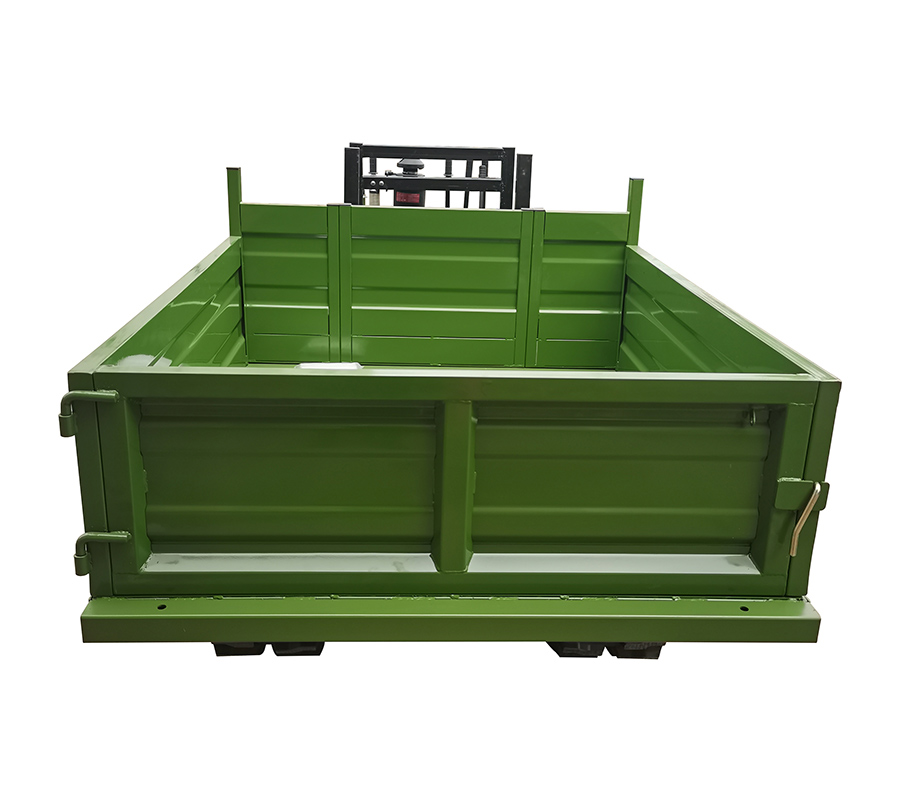

CONTAINER DIMENSIONS | 1800*1500*450 mm | SELF-UNLOADING | Hydraulic |
CONTAINER GROUND CLEARANCE | 550mm | STARTING METHOD | Electric Start |
RATED LOAD CAPACITY | 1000kg | CLUTCH TYPE | Lever-operated Clutch |
MAX LOAD CAPACITY | 3 ton | STEERING TYPE | Brake Steering |
MACHINE WEIGHT | 1267kg | LOAD WHEEL | Steel 7*180 |
MIN TURNING RADIUS | 2 m | TRACK SPECIFICATIONS | 280*72*64 mm |
TRACK WIDTH | 120cm | TRACK MATERIAL | Engineering Rubber Track |
ENGINE MODEL | Water-cooled Diesel D32M | |
Heavy-Duty Mini Crawler Transporter 1200-6 | 1 Ton Rated – 3 Ton Max Payload
The Crawler Transporter 1200-6 delivers exceptional performance in the toughest environments. Engineered with a reliable rated payload of 1000kg for everyday continuous use and a robust maximum capacity of 3000kg for short-haul heavy loads, this upgraded mini tracked dumper excels where wheeled machines fail.
Key Features – Model 1200-6:
- High-grip rubber tracks with ultra-low ground pressure – ideal for mud, sand, wet soil, steep inclines & soft terrain
- Powerful diesel engine (electric variant optional) for strong torque & fuel efficiency

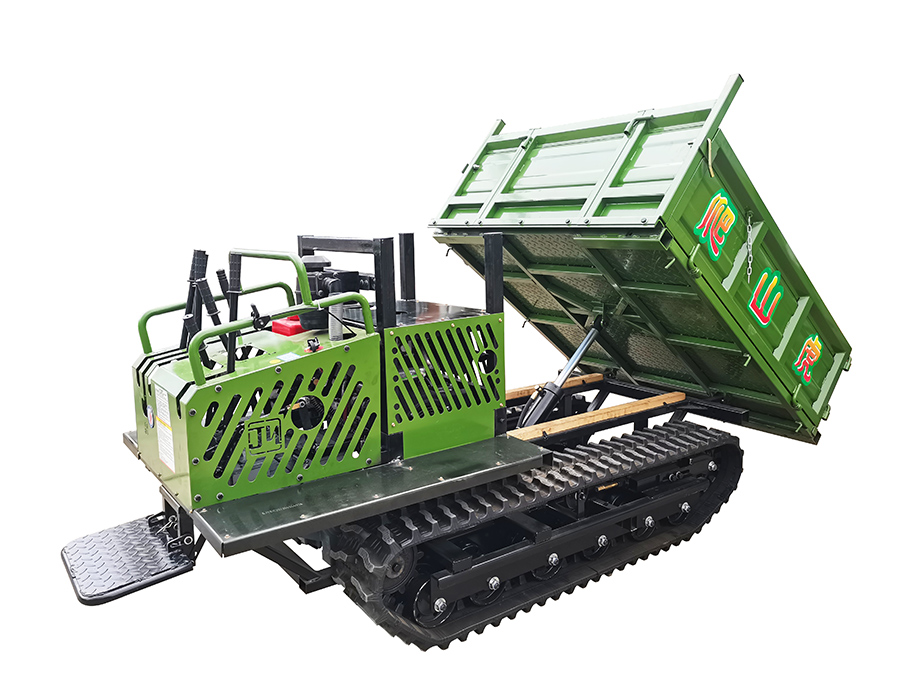

- Hydraulic self-dumping skip (multi-directional tipping available)
- Compact footprint & tight turning radius – single-operator ease
- Versatile for orchards (fruit/fertilizer transport), farms, landscaping, small construction, greenhouse substrate handling & mining support
-
