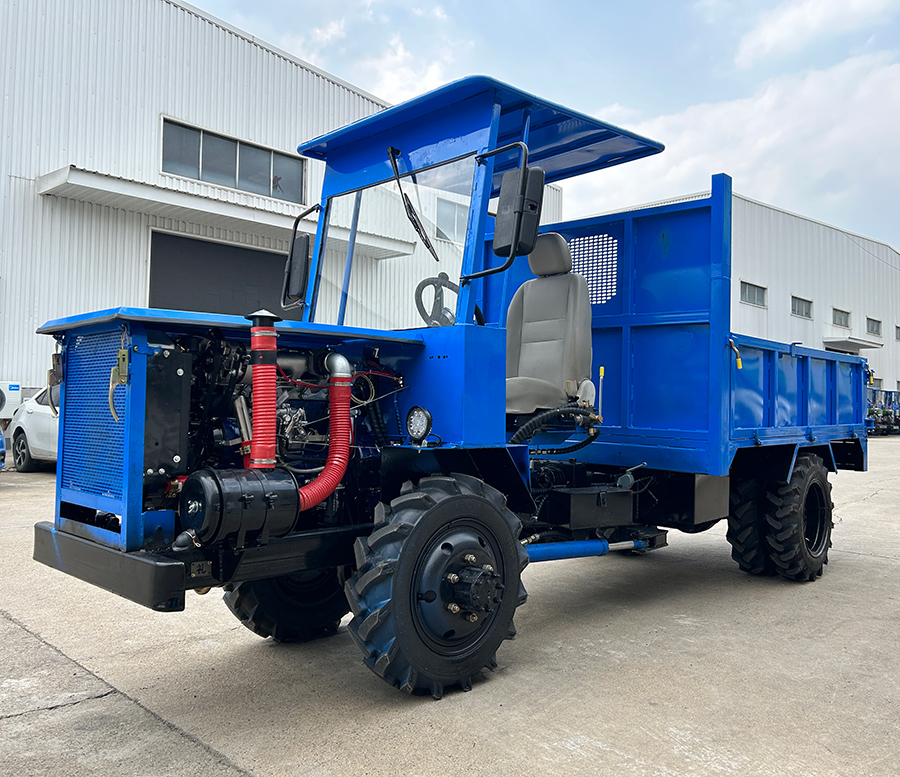

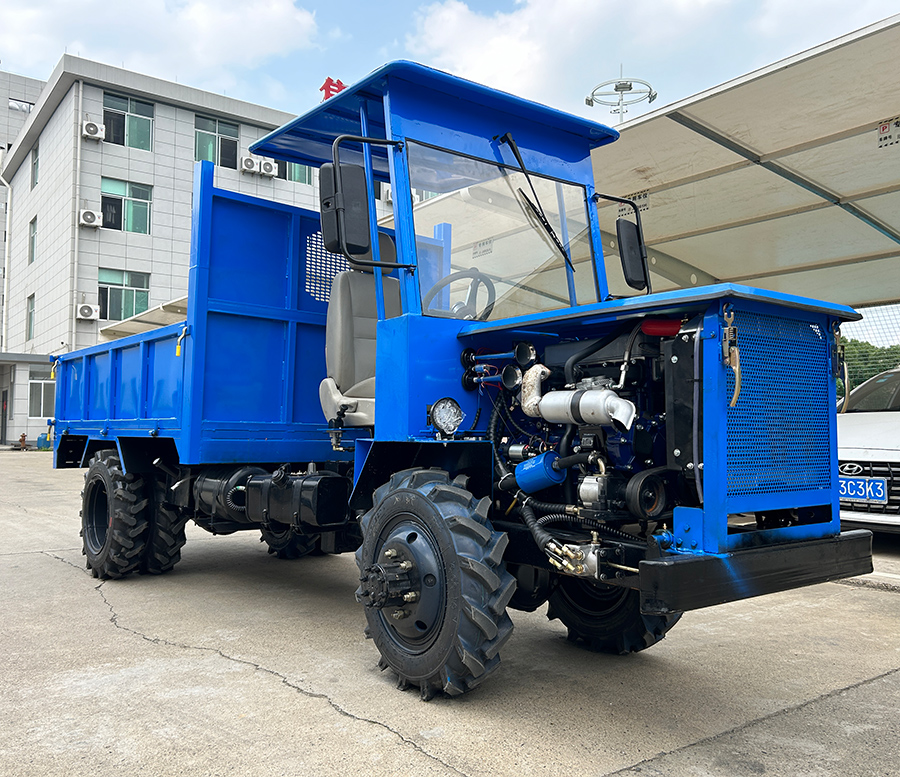

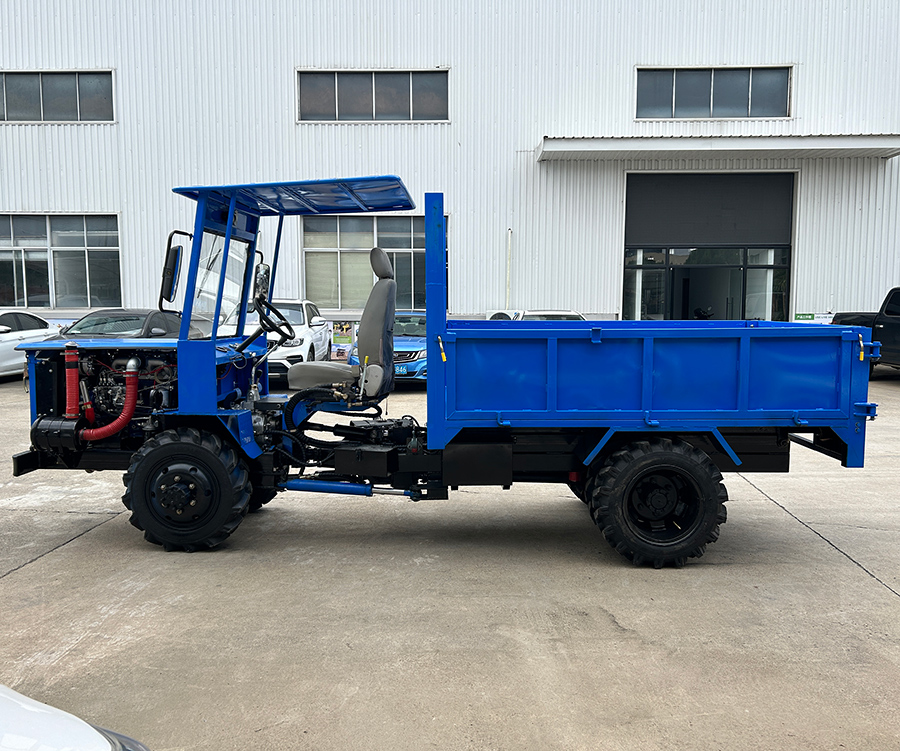

Python-4WD-1500 Articulated 4x4 Wheel Transporter

Python-4WD-1500: Snake-like articulated chassis + 4x4 drive on 4 wheels (no tracks). Ultimate flexibility for steep orchard hills, muddy farm paths & tight turns. Diesel power, low soil compaction, high MS1500 maneuverability. Perfect mini transporter for fruit/fertilizer hauling in agriculture. Quote & demo video available!

Contact Us

PARAMETER


MODEL
JY-MS1500
TIRE
600-16 Aulice Tyre * 6
LFUSELAGE WIDTH
11.03m for single wheel 1.45m for double wheel
BRAKING
Air brakes with emergency brake system
FUSELAGE LENGHT
4.3m
DUMP MODE
Hydraulic Unload Dual Oil Cap
CONTAINER DIMENSION(Ext)
2000*1500*500mm
GEAR
Eight Forward, Two Reverse
ENGINE
YUNNEI490/64HP
STEERING
Full hydraulic cylinder fold type
GEAR BOX
130 with auxiliary box
WHEELBASE
Front and Rear Wheel Center 2.65m
TRANSFER CASE
lx-16
COOLING
Antifreeze
MAX.LOAD LIMIT
4 Tons
TOTAL WEIGHT
2 Tons
TDRIVE MODE
4wd, Front Drive, Rear drive
MIN. PASSING
1.03m for single wheel 1.6m for double wheel
DRIVE AXLE
130 with Front and Rear Speed locks

Python-4WD-1500 – Articulated 4x4 Wheel Transporter for Steep Orchards & Farms (No Tracks)
The Python-4WD-1500 is optimized for agriculture: its python-style articulated joint bends like a snake over uneven rows and hills, while full 4x4 drive on four large wheels provides superior traction without the weight or soil damage of tracks.
